Portable Digital Gauss Meter/ Tesla Meter

Portable Digital Gauss Meter/ Tesla Meter


Digital gauss meter is a specialized instrument used to measure and display the average magnetic flux density or magnetic induction intensity per unit area. It is one of the most widely used magnetic measuring instruments in magnetic field.



BS-GM-01 Portable Digital Gauss Meter can be used to measure the magnetic induction intensity of DC magnetic field, radiation magnetic field, remanent magnetic field, earth magnetic field and any others. The liquid crystal display(LCD) of the instrument is clear, the buttons are the most advanced touch button in China, greatly enhance its service life and comfort level. The built-in program can automatically record thousands of measuring data and query the measuring data within the set time. The instrument meter also has the function of peak holding, MT/GS unit conversion, automatic zero adjustment, and multi-range conversion with each other, etc. The power supply only uses 2 pieces of 18650 batteries, which can work continuously for more than 24 hours. It can be charged by connecting the phone charger basing on our providing communication power cord. It is easy to operate and have a wide measuring range, also be portable (210mmX100mmX35mm). Perfect quality assurance and excellent after-sales service is the ideal choice for you.

Design principle

The sensor applied in Portable digital Gauss meter is Hall sensor, which is made basing on the Hall effect’s principle. There are two kinds of sensor: horizontal and axial. Users can choose or configure them according to their needs. The circuit adopts low drift amplifier and high stability power supply, singlechip control, 3.5 inch LCD.

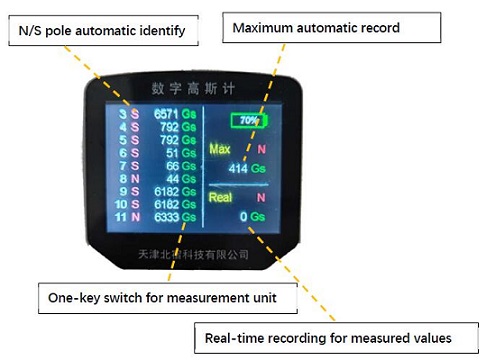

Product interface



Characteristics and advantages

  • Automatic identification for N/S magnetic pole
  • Host automatic memory
  • One-key reset, convenient and reliable
  • mT/Gs unit automatic conversion;
  • Simple operation without calibration
  • Rechargeable battery, long standby time
  • 3.5” large LCD screen displays clearly
  • Automatically shut down without measuring for 60 seconds

Application scope

  • Inspection of magnets’ peak value and DC magnetic field
  • Inspection of permanent magnet’s distribution in magnetic field
  • Inspection of the magnetization of permanent magnets
  • Inspection of the magnetic field’s distribution in DC coil
  • Inspection of gap magnetic field in DC electromagnet
  • Inspection of conventional DC magnetic field
