Magnetic Rollor Separator

Magnetic Rollor Separator

---

High intensity magnetic roller separator is a new and powerful permanent magnetic separator. It is mainly used to remove weak magnetic iron impurities mixed in powder or pellets from the raw material or finished product production line.

Get Quote »

Powerful magnetic roller separator is a kind of NdFeB permanent high gradient magnetic separator. The utilization of extremely powerful permanent magnetic circuit design guarantees better separation results. Before the material passes over the roller magnetic separator, it is necessary to filter out as much ferromagnetic impurities as possible to achieve the best iron removal effect. To get better effect, the material usually needs to be fed to the magnetic roller surface by the vibration feeder chute.

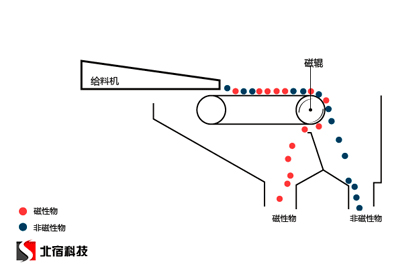

Design principle

Powerful magnetic roller separator evenly convey the material to rubber belt rounded on magnetic roller by vibration chute. Because of magnetic force, the magnetic field attracts and holds ferrous particles firmly to the drum shell. Whereas the non-magnetic material is thrown forward by gravity and inertia, thereby achieving the iron automatic separation.

Characteristics and advantages

• Surface field strength up to 14000 Gauss, used for high purity purification
• No downtime for automatic iron unloading
• Cantilever design which allows for quick belt replacement
• All stainless steel constructure, compact, modular design
• Treat wide range of particle sizes
• Consistent and controllable feed via electromagnetic vibratory feeder

Optional configuration

• A variety of magnetic circuit and temperature tolerance criteria are available
• Surface treatment can be sandblast or polish

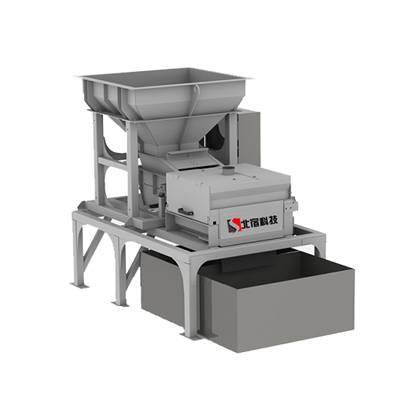

• Optional sealed dust cover and transparent observation window

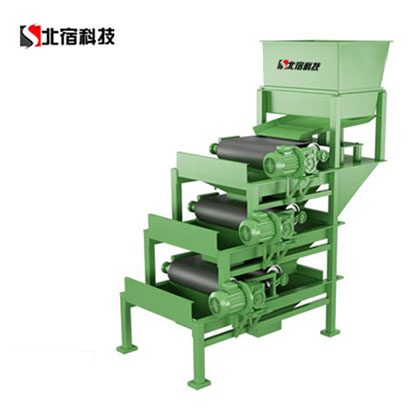

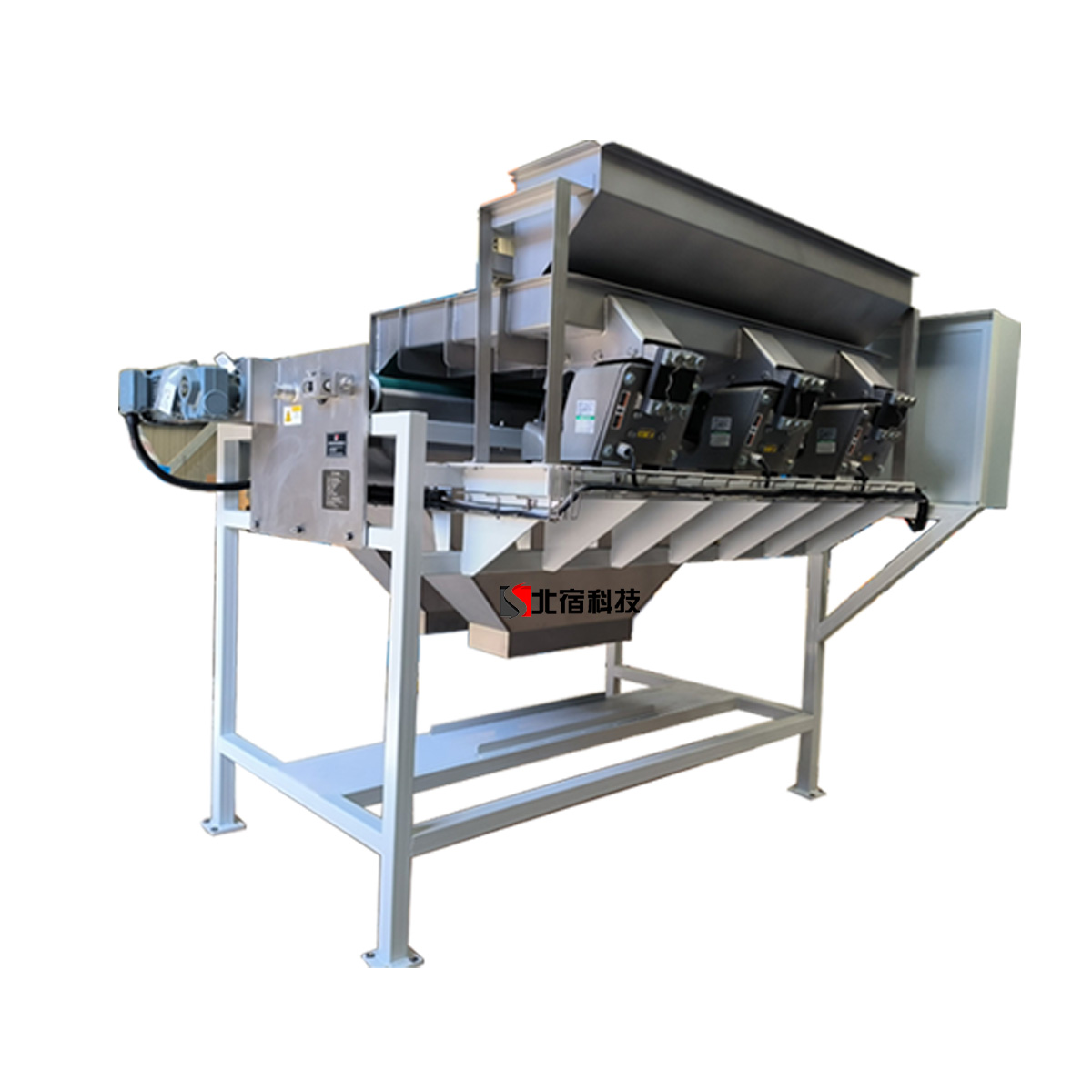

• Optional single, double, and triple stage machines

Application

It is used to purify or enrich non-magnetic materials, and is often used in applications where the product needs high purity.

Material handling

Industrial minerals, abrasives, plastics, food, pharmaceutical, recycling, metal and special materials processing
